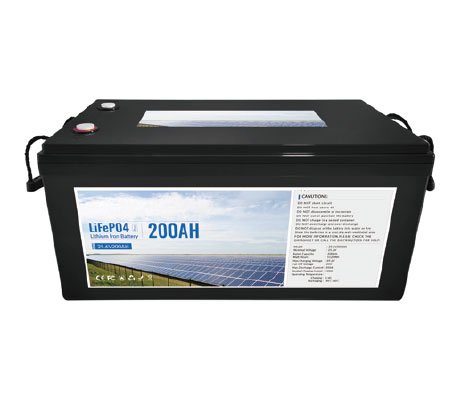

Wenhua Energy 25.6V 65AH 70AH 80AH 88AH 100AH 120AH 150AH 200AH LiFePO4 Battery Series

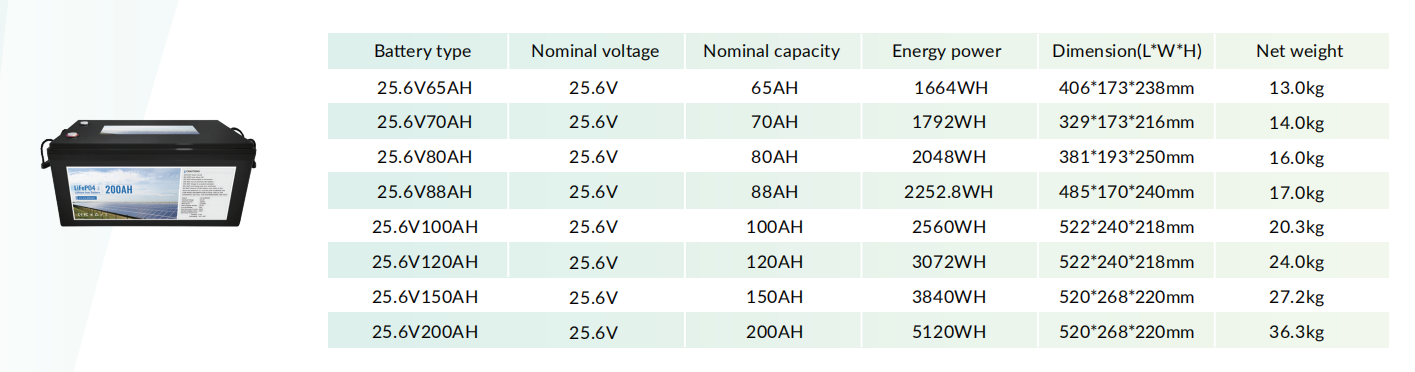

## 📊 Full Product Specifications| Battery type | Nominal voltage | Nominal capacity | Energy power | Dimension (L*W*H) | Net weight | | :--- | :--- | :--- | :--- | :--- | :--- | | 25.6V65AH | 25.6V | 65AH | 1664WH | 406×173×238mm | 13.0kg | | 25.6V70AH | 25.6V | 70AH | 1792WH | 329×173×216mm | 14.0kg | | 25.6V80AH | 25.6V | 80AH | 2048WH | 381×193×250mm | 16.0kg | | 25.6V88AH | 25.6V | 88AH | 2252.8WH | 485×170×240mm | 17.0kg | | 25.6V100AH | 25.6V | 100AH | 2560WH | 522×240×218mm | 20.3kg | | 25.6V120AH | 25.6V | 120AH | 3072WH | 522×240×218mm | 24.0kg | | 25.6V150AH | 25.6V | 150AH | 3840WH | 520×268×220mm | 27.2kg | | 25.6V200AH | 25.6V | 200AH | 5120WH | 520×268×220mm | 36.3kg | --- ## ✨ Key Features ### 1. High-Voltage & High-Energy Density - **25.6V high-voltage design**: Reduces current, minimizes line losses, and simplifies system integration for medium-scale energy storage projects. - **1664Wh to 5120Wh energy capacity**: Ideal for medium to large-scale solar, RV, and industrial backup systems. - **Modular design**: Supports parallel expansion for higher capacity, making it easy to scale your system. ### 2. Advanced BMS & Safety Protection - **Multi-layer BMS protection**: Overcharge, over-discharge, over-current, short-circuit, and temperature protection ensure safe operation. - **Cell equalization**: Active balancing maintains cell health and extends the overall lifespan of the battery pack. - **Intelligent monitoring**: Real-time data on voltage, current, SOC, and temperature for proactive maintenance. ### 3. Lightweight & Durable Design - **Significant weight reduction**: At just 13.0kg to 36.3kg, these batteries are up to 60% lighter than equivalent lead-acid batteries, making them ideal for RVs and portable systems. - **Robust construction**: Built to withstand vibration and shock, suitable for industrial and marine environments. - **Easy installation**: Pre-wired and pre-configured for quick deployment, reducing setup time. ### 4. Eco-Friendly & Cost-Effective - **LiFePO4 chemistry**: Non-toxic, no heavy metals, and a much lower environmental impact than lead-acid batteries. - **Long cycle life**: ≥4000 cycles at 80% DOD, which is 8-10 times longer than lead-acid, significantly reducing the total cost of ownership. - **Maintenance-free**: No need for regular watering or equalization charges, saving time and labor. --- ## 🛠️ Application Scenarios 1.  **Solar & Off-Grid Systems**    - Used in medium to large-scale solar setups for cabins, boats, and off-grid facilities, providing a stable and efficient energy storage solution. 2.  **RVs & Campers**    - Provides reliable deep-cycle power for lighting, refrigerators, and other onboard appliances, extending your off-grid adventures. 3.  **Industrial & Commercial Energy Storage**    - Used for peak shaving, load shifting, and integrating with renewable energy sources like solar and wind. 4.  **Backup Power & UPS**    - Delivers stable backup power for critical systems, ensuring uninterrupted operation during outages. --- ## 📦 Package Includes - Wenhua Energy 25.6V LiFePO4 Battery ×1 - Built-in BMS and monitoring system ×1 - User manual & warranty card ×1 - Installation hardware (where applicable) --- ## 🛡️ Warranty & Service - **5-year limited warranty** covering material and workmanship defects. - **Professional technical support** for installation, operation, and troubleshooting. - **Global service network** for fast and efficient after-sales support. --- ## ❗ Important Notes - Use only dedicated LiFePO4 chargers. Do not use lead-acid battery chargers. - When connecting batteries in series or parallel, ensure they are from the same batch and have matching specifications. - For long-term storage, maintain the battery at 50-70% state of charge and recharge every 3 months. - Avoid exposing the battery to direct sunlight, water, or extreme temperatures for extended periods.
