Industrial-Grade High-Voltage LiFePO4 Battery Packs | 192V & 307.2V
Product Details

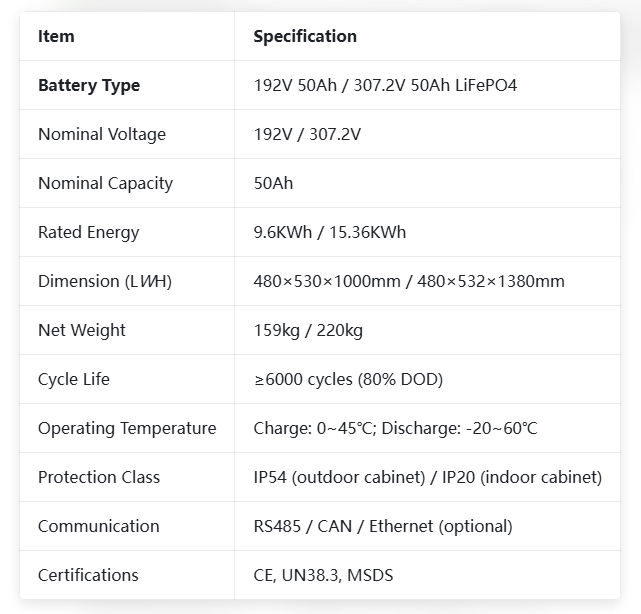

## 🔋 Product Overview 📊 Core Specifications---✨ Key Features
1. High-Voltage & High-Energy Density
192V / 307.2V high-voltage design**: Reduces current, minimizes line losses, and simplifies system integration.
9.6KWh / 15.36KWh energy capacity**: Ideal for medium to large-scale energy storage projects.
Modular design**: Supports parallel expansion for higher capacity, making it easy to scale your system.
2. Advanced BMS & Safety Protection
Multi-layer BMS protection**: Overcharge, over-discharge, over-current, short-circuit, and temperature protection ensure safe operation.
Cell equalization**: Active balancing maintains cell health and extends the overall lifespan of the battery pack.
Intelligent monitoring**: Real-time data on voltage, current, SOC, and temperature for proactive maintenance.
3. Durable & Versatile Design

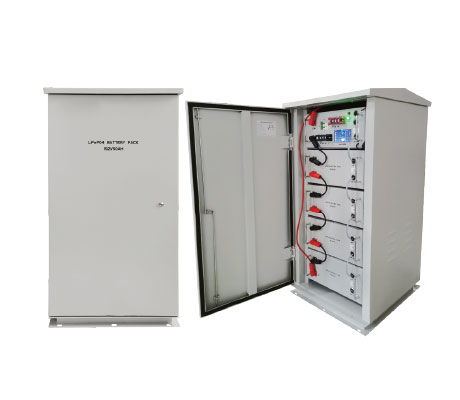

- Two cabinet options**:
- Light gray outdoor cabinet**: IP54-rated, weatherproof, and corrosion-resistant for outdoor deployments.
- Black indoor cabinet**: Sleek, space-efficient design for data centers and server rooms.
- Robust construction**: Built to withstand vibration and shock, suitable for industrial environments.
- Easy installation**: Pre-wired and pre-configured for quick deployment, reducing setup time.
### 4. Eco-Friendly & Cost-Effective
- LiFePO4 chemistry**: Non-toxic, no heavy metals, and a much lower environmental impact than lead-acid batteries.
- Long cycle life**: ≥6000 cycles, which is 10-20 times longer than lead-acid, significantly reducing the total cost of ownership.
- Maintenance-free**: No need for regular watering or equalization charges, saving time and labor.
---
🛠️ Application Scenarios
1. Data Centers & Server Rooms**
- Acts as a reliable UPS backup power source, ensuring uninterrupted operation of critical IT infrastructure during outages.
2. Outdoor Communication Base Stations**
- The IP54-rated outdoor cabinet is perfect for remote base stations, providing stable power even in harsh weather conditions.
3. Industrial & Commercial Energy Storage**
- Used for peak shaving, load shifting, and integrating with renewable energy sources like solar and wind.
4. Microgrids & Off-Grid Systems**
- Provides a stable and independent power supply for remote communities, islands, and off-grid facilities.
---
📦 Package Includes
- Wenhua Energy LiFePO4 Battery Pack ×1
- Pre-installed BMS and monitoring system ×1
- User manual & warranty card ×1
- Installation hardware (where applicable)
---
🛡️ Warranty & Service
- **5-year limited warranty** covering material and workmanship defects.
- **24/7 technical support** for installation, operation, and troubleshooting.
- **Global service network** for fast and efficient after-sales support.
---
❗ Important Notes
- Ensure the battery pack is installed and operated by qualified personnel in accordance with the user manual.
- Use only compatible charging and inverter systems recommended by Wenhua Energy.
- For long-term storage, maintain the battery at 50-70% SOC and recharge every 3 months.
- Avoid exposing the battery pack to direct sunlight, water, or extreme temperatures for extended periods.
---
